NANOPEAK SERIES LASERS
Compact and cost-effective solutions for OEM's

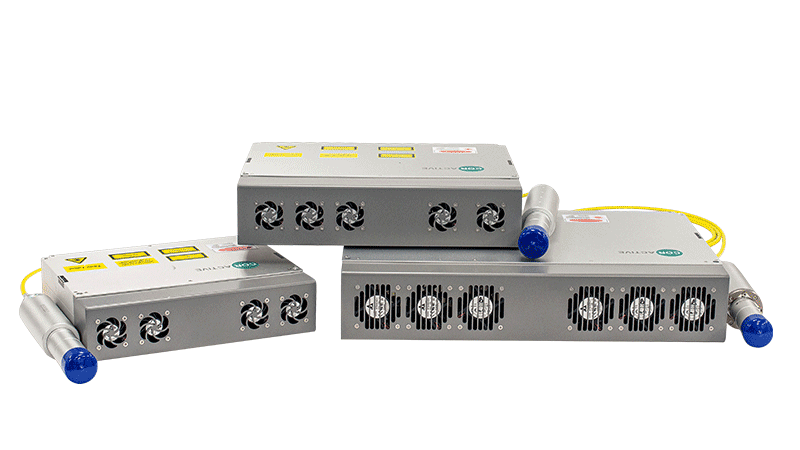

Coractive’s pulsed ns fiber lasers are designed with OEM’s ease of integration in mind. While being compact, MOPA pulsed fiber lasers fromour NANOPEAK series can reach higher peaks of energy density and their nanosecond pulses improve metal marking and engravingprocesses. They feature exceptional long-term stability, thanks to our unique combination of innovative optical fibers and advanced lasertechnologies. As a result, you enjoy very efficient systems for the investment without compromising on either performance or cost.
- Unique combinaison of innovative optical fibers and advanced lasertechnologies garantee longterm stability
- High power – faster processing
- Pulse Waveform selection – pulse widths from 2 – 500 ns
- Output turndown of 5% – offers great flexibility
- Wide range of repetition rates – allows maximum peak power andpulse energy for each waveform setting
- Excellent isolator design – safe processing of any material
- Maximum pulse energy: 1 mJ
- Maximum peak power: 15 kW
- Compact and robust – enhancing the ease of OEM integration
- Air-cooled
- Easy-to-use, Plug & Play design
- Maintenance-free
- 2-year standard warrantyy
Applications
- Laser marking and engraving
- Fine cutting
- Laser layer removal
- Low heat spot welding
FEATURES
Optic
| MODEL |
NANOPEAK 20 |
NANOPEAK 20 SM |
NANOPEAK 30 |
NANOPEAK 50 |
NANOPEAK 70 |
NANOPEAK 100 |
| Mode of Operation | Pulsed | Pulsed | Pulsed | Pulsed | Pulsed | Pulsed |
| Polarization | Random | Random | Random | Random | Random | Random |
| Operating Wavelength (nm) (nm) | 1064 | 1064 | 1064 | 1064 | 1064 | 1064 |
| Nominal Output Power (W) | 20.5 ± 1.0 | 20.5 ± 1.0 | 30.5 ± 1.0 | 50.5 ± 1.0 | 69.5 ± 1.5 | 99 ± 5 |
| Power Stability (%) | < 3 | < 3 | < 3 | < 3 | < 3 | < 5 |
| Output Power Tuning Range(%) | 5 – 100 | 5 – 100 | 5 – 100 | 5 – 100 | 5 – 100 | 5 – 100 |
| Maximum Peak Power (kW) | 15 | 15 | 15 | 15 | 15 | 15 |
| Maximum Peak Energy (mJ) | 1.0 | 0.7 | 1.0 | 1.0 | 1.0 | 1.0 |
| Pulse Width Range (ns) | 4 – 200 | 4 – 200 | 4 – 200 | 4 – 200 | 2 – 500 | 2 – 500 |
| Repetition Rate Range (kHz) | 1.6 – 1000 | 1.6 – 1000 | 1.6 – 1000 | 1.6 – 1000 | 1.6 – 3000 | 1.6 – 1000 |
| Beam Quality BPP (mm x mrad) | 1.6 ± 0.4 | 1.3 | 1.6 ± 0.4 | 1.6 ± 0.4 | 1.6 ± 0.4 | 1.6 ± 0.4 |
| Beam Diameter (mm) | 6 – 9 | 6 – 9 | 6 – 8 | 7.5 ± 1.5 | 5 – 9 | 7.5 ± 1.5 |
Electrical
| MODEL |
NANOPEAK 20 |
NANOPEAK 20SM |
NANOPEAK 30 |
NANOPEAK 50 |
NANOPEAK 70 |
NANOPEAK 100 |
| Operating Voltage (VDC) | 24 ± 1 | 24 ± 1 | 24 ± 1 |
24 ± 1 |
24 ± 1 | 24 ± 1 |
|
Operating Current (A)
|
< 5 | < 5 | < 6.5 | 6-12 | < 11 | < 20 |
Mechanical & Environmental
| MODEL |
NANOPEAK 20 |
NANOPEAK 20SM |
NANOPEAK 30 |
NANOPEAK 50 |
NANOPEAK 70 |
NANOPEAK 100 |
| Dimensions (WxDxH mm) | 292 x 235 x 72 | 292 x 235 x 72 | 292 x 235 x 72 |
364 x 273 x 84.5
|
364 x 273 x 84.5
|
400 x 300 x 124 |
| Output Fiber Length (m) | 2.0 – 2.5 | 2.0 – 2.5 | 2.0 – 2.5 | 2.0 – 2.5 | 2.0 – 2.5 | 2.0 – 2.5 |
| OperatingTemperature (°C) | 10 – 35 | 10 – 35 | 10 – 35 | 10 – 35 | 10 – 35 | 10 – 35 |
| Operating Humidity (% rel.) | 10 – 95 | 10 – 95 | 10 – 95 | 10 – 95 | 10 – 95 | 10 – 95 |
| Cooling Method | Air Cooled | Air Cooled | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Download Product Documentation | Download Product Documentation | Download Product Documentation | Download Product Documentation | Download Product Documentation | Download Product Documentation |
