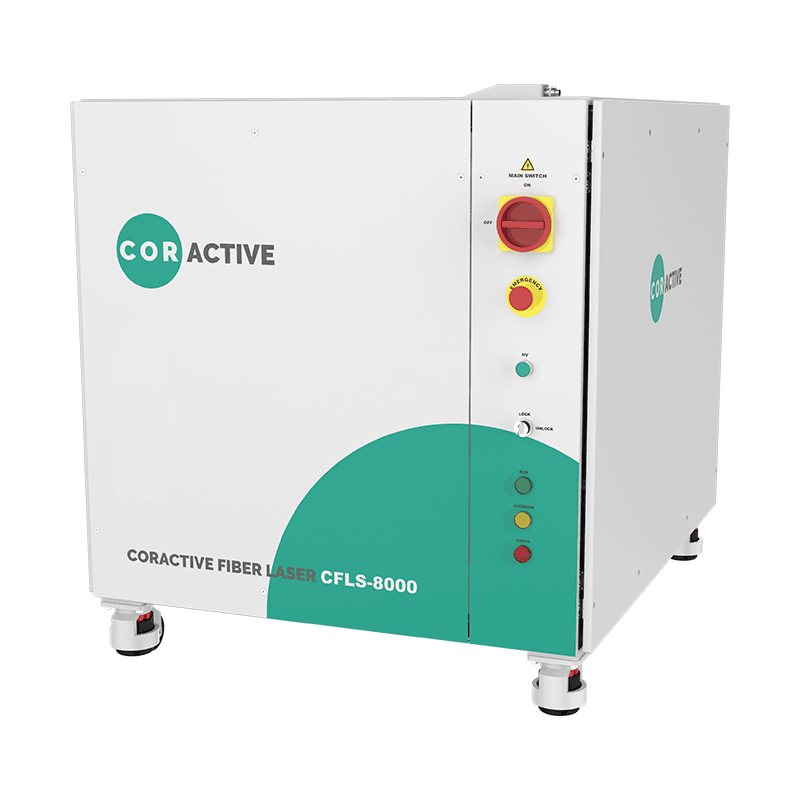

CFLS SERIES LASERS
OPTIMUM FOR PRECISE LASER CUTTING
The CFLS Series is a CW fiber laser series with superior long-term durability at high power levels. It provides excellent performance in cutting and welding materials up to 35 mm thick. Moreover, its excellent back reflection protection ensures uninterrupted operation in the processing of highly reflective materials. CFLS Series is waiting to take its place in your production area with its compact design.
Features & Benefits
- Unique combination of innovative optical fibers and advanced laser technologies guarantee longterm stability
- High reliability – enables continuous cutting operations
- Excellent beam quality
- Outstanding back-reflection protection – safe processing of highly reflective materials
- High modulation rate – ensures fast piercing time for efficient metal processing
- 35% wall-plug efficiency – reduces the overall electrical power consumption
- Industrial-grade quality – durability in harsh manufacturing environments
- Easy-to-use, Plug & Play design
- Maintenance-free
- Remote diagnostic software for fast support
- Water-cooled chiller also available
- 3-year warranty
Applications
- Laser Cutting
- Laser Welding
FEATURES
Optic
| MODEL | CFLS 3000 | CFLS 4000 | CFLS 6000 | CFLS 8000 |
| Mode of Operation | CW/Modulated | CW/Modulated | CW/Modulated | CW/Modulated |
| Polarization | Random | Random | Random | Random |
| Operating Wavelength (nm) (nm) | 1080 ± 5 | 1080 ± 5 | 1080 ± 5 | 1080 ± 5 |
| Nominal Output Power (W) | 3000 | 4000 | 6000 | 8000 |
| Power Stability (%) | ± 1 | ± 1 | ± 1 | ± 1 |
| Output Power Tuning Range(%) | 10 – 100 | 10 – 100 | 10 – 100 | 10 – 100 |
| Modulation Frequency (kHz) | 0 – 50 | 0 – 50 | 0 – 50 | 0 – 50 |
| Laser Raise/Descent Time (µs) | 15 max. | 15 max. | 15 max. | 15 max. |
| Output Fiber Core Diameter (µm) * | 50/100* | 50/100* | 50/100* | 50/100* |
| Beam Quality BPP (mm x mrad) | 1.5 – 1.2 for 50 μm / ≤ 4.0 for 100 μm | 1.5 – 1.2 for 50 μm / ≤ 4.0 for 100 μm | 1.5 – 1.2 for 50 μm / ≤ 4.0 for 100 μm | ≤ 4.0 (10.0) max. |
Electrical
| MODEL | CFLS 3000 | CFLS 4000 | CFLS 6000 | CFLS 8000 |
| Operating Voltage (VAC) | 330 – 430, 3P | 330 – 430, 3P | 330 – 430, 3P | 330 – 430, 3P |
| Operating Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Power Consumption (W) | 9000 | 12000 | 18000 | 24000 |
Mechanical & Environmental
| MODEL | CFLS 3000 | CFLS 4000 | CFLS 6000 | CFLS 8000 |
| Dimensions (WxDxH mm) | 1098 x 1010 x 1168 | 1098 x 1090 x 1168 | 1320 x 1016 x 1038 | 1532 x 1098 x 1188 |
| Output Fiber Length (m) | 20 | 20 | 20 | 20 |
| Cooling Method | Water-cooled | Water-cooled | Water-cooled | Water-cooled |
Documents
| MODEL | CFLS 3000 | CFLS 4000 | CFLS 6000 | CFLS 8000 |
| Download Product Documentation | Download Product Documentation | Download Product Documentation | Download Product Documentation |
* Please contact for other types.
